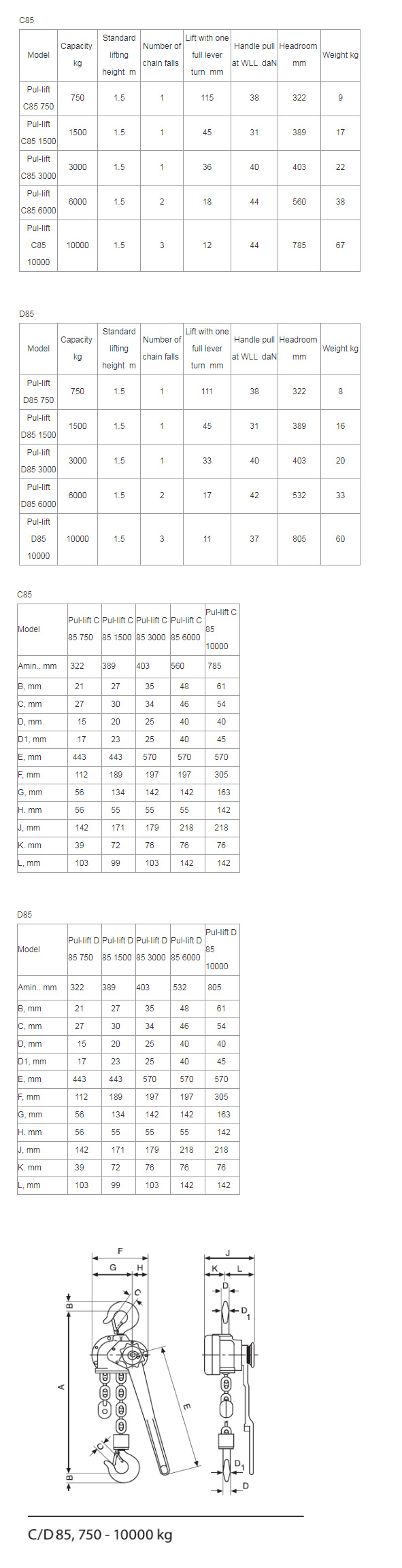

C85 Ratchet lever hoist with roller chain D85 Ratchet lever hoist with link chain |
|
|
Capacity 750 - 10000 kg Almost unlimited applications in maintenance, mining,construction, steel fabrication, shipbuilding and utility work. Ideal for moving and positioning heavy machines and securing heavy loads, simplifies setting pipes etc. in manholes and trenches. Standard Features Enclosed housing with housing cover, handlever and bottom block made from high tensile white malleable cast iron for overall rugged construction. The graphite cast iron load sheave for the link chain has precision machined chain pockets for accurate fit and durability of the load chain. The roller chain sprocket is made from heat treated chromium-molybdenum steel with precision machined teeth to ensure smooth chain movement. Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations. Options All models can be equipped with an overload prevention device in the form of a slip clutch which is factory preset to approx. 25 % ± 15 % overload. Free chaining device to quickly attach the load or to pull the chain through the hoist in both directions. Hoist with sling chain.
|
