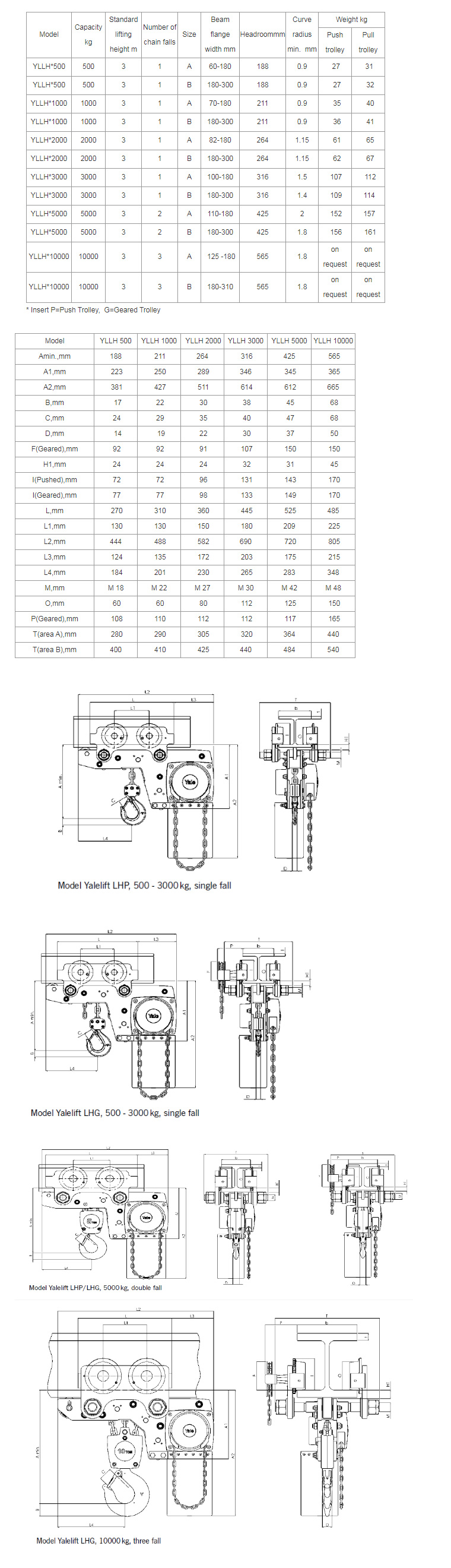

Yalelift LHP/LHG Hand chain hoist with integrated push or geared type trolley (low headroom) |
|
|
Capacity 500 - 10000 kg The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the consequent further development of the Yalelift IT, Wherever an even smaller headroom is essential. the Yalelift LH is the ideal choice. Standard Features The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange. The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series. All models of the LH series up t0 3000 kg capacity are provided with single chain fall. The proven and almost stepless adjustment system allows quick and easy assembly of the trolley. The trolleys up t0 5 t are offered for two beam ranges. Range A for a flange width up t0 180 mm is standard and covers approx. 80 % of all requirements. Conversion to range B for beam width up t0 300 mm can be easily accomplished. The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings. The low headroom version of the Yalelift IT is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB). Anti-drop and anti-tilt devices as standard. Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings. Options Adjustable overload prevention device. Stainless steel load and hand chains. Chain container Corrosion resistant version Explosion proof version (ATEX) Beam locking device to secure the unloaded trolley in a fixed position on the beam (park position e.g. on ships). Available up to a capacity of 10000 kg.
|
