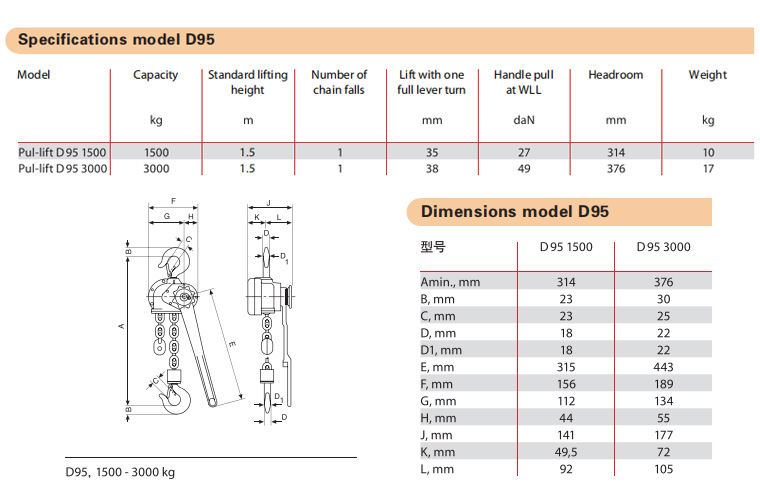

D 95 Ratchet lever hoist with link chain |
|
|
Capacity 1500 - 3000 kg The D 95 in its cast malleable iron design has taken key technical features from the proven D 85 but excels due to low tare weight and an extremely small measurement between suspension and load hooks. A versatile unit for moving, positioning and securing loads. Standard Features • Enclosed housing with housing cover, handlever and bottom block made from high tensile malleable cast iron for overall rugged construction. • The short handlever is fitted with an ergonomic rubber grip. • It has an automatically acting load pressure brake which works on the self-locking principal. For example, when used to secure loads an uninten-tional loosening of the brake is prevented when the load vibrates. • Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions. • Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations. Options • All models can be equipped with an overload prevention device in the form  of a slip clutch which is factory preset to approx. 25 % ± 15 % overload.• Hoist with sling chain. |
