Yalelift it ATEX integrated hand push or hand pull car combination |
|
|

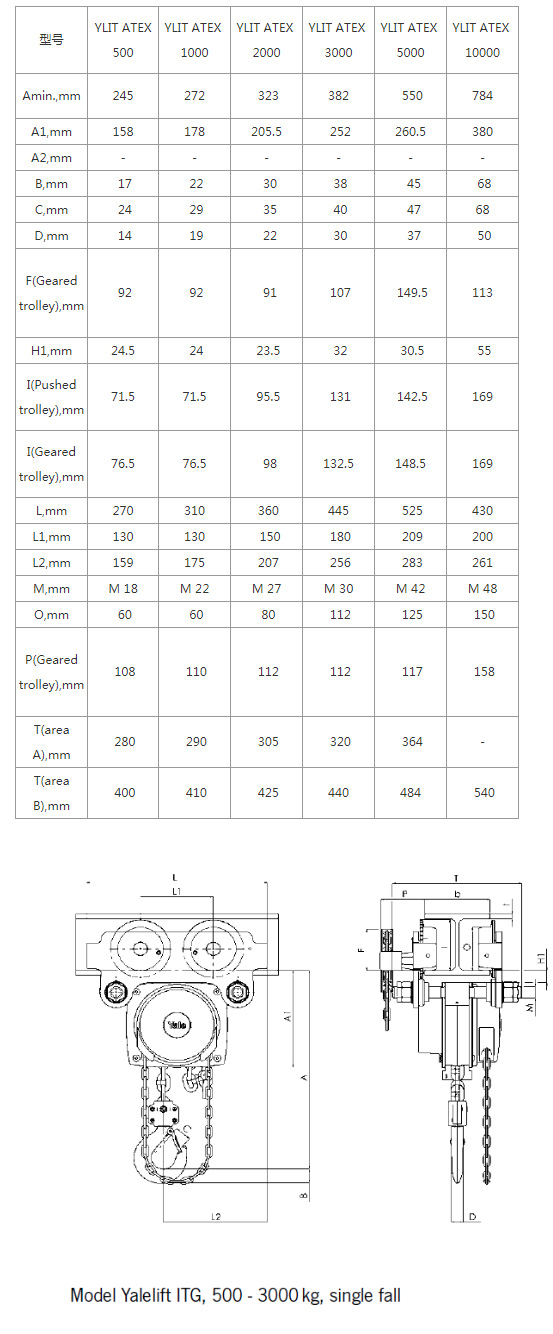

Rated load 500 - 20000 kg Yalelift 360 explosion proof hoist with low clearance car makes the application of yalelift 360 more flexible. Product features All models of this series with rated load less than 3000 kg adopt single chain form, and reduce the lower clearance height (dimension a). Suitable for low ceiling and space limited applications with low clearance requirements. The installation and adjustment of the trolley is very convenient, and it can be adjusted accurately according to the width of the steel beam. The trolley with rated load less than 5 tons can be provided with two specifications. Type A is a standard trolley, which is suitable for I-beam with width less than 180 mm. This model can cover almost 80% of customers needs. At the same time, type a can be easily converted to type B (I-beam with width less than 300 mm). The design of the trolley wheels (medium and high only) ensures flexible rolling under the inclination of the lower edge of I-beam of 14% (DIN 1025-1 standard). At the same time, the sealed ball bearing with lubrication treatment ensures the good operation of the wheel. Standard car anti falling and anti tilting device. Fireproof flower coating. Car with anti-collision block. Medium or copper plated upper hook and lifting hook. High adopts stainless steel lifting chain. Product options Adjustable overload protection device Chain bag Trolley fixing device, to ensure that the trolley is fixed on the rigid beam (stay position, e.g. on board)
|
