Value King |
|
|

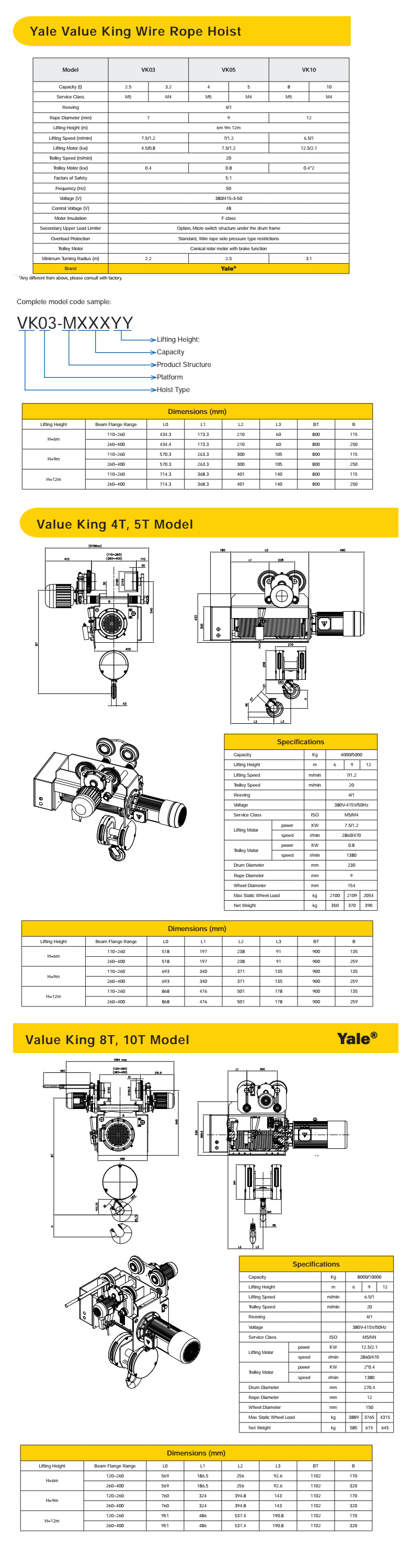

Rated load 2500 – 10000 kg Product advantages: Light weight, small clearance size, relatively large limit. The technical design of space priority ensures the optimal limit size of the product. The steel structure is compact, which greatly reduces the overall size of the hoist, reduces the requirements for the height of the plant, and reduces the investment cost of customers. Accurate positioning, high operation efficiency, improve logistics efficiency The powerful and high-quality lifting drive mechanism ensures the safety and efficiency of work, improves the logistics handling efficiency of the workshop, and ensures the construction period requirements of customers. The compact steel structure design ensures that the offset size of the hook is relatively small. Rated load: 10000 kg The static load safety factor of the whole machine is 5:1 It is equipped with anti impact limit and overload limiter as standard Applicable beam width 400mm The whole machine is easy to assemble and disassemble, which is convenient for later maintenance Product features: Lifting motor The hoisting motor adopts three-phase squirrel cage 2 / 12 asynchronous two speed motor, and the power supply hoist is used for direct starting. The motor adopts F-class insulation and the protection grade is IP54. Reliable operation and low noise. The lifting motor is a two speed adjustable type, and the ratio of high speed and low speed can reach 6:1, which can meet the requirements of accurate positioning at low speed and fast take-off and landing at high speed. The shell of the motor is made of aluminum alloy extruded profiles, with beautiful appearance. Brake The electromagnetic disc brake is integrated at the end of the lifting motor and does not contain asbestos material. The braking torque is 2.5 times greater than the rated torque of the motor. retarder Oil immersed gear transmission mechanism adopts three-stage planetary reduction design, uses finish machined gears and brand bearings, and is maintenance free for life without changing oil. The reducer is built into the drum to save your space. drum The design of the drum is optimized, which is beneficial to prolong the service life of the rope guide and the wire rope. a wire rope It is made of GB / t8918-2006 high-strength steel wire rope and high-quality steel, with strength up to 2160mpa, ensuring durability and good flexibility. Walking motor Three in one squirrel cage two speed motor, with brake function, class F insulation, compact structure, space saving, stable operation, low noise, starting and braking impact.
|
